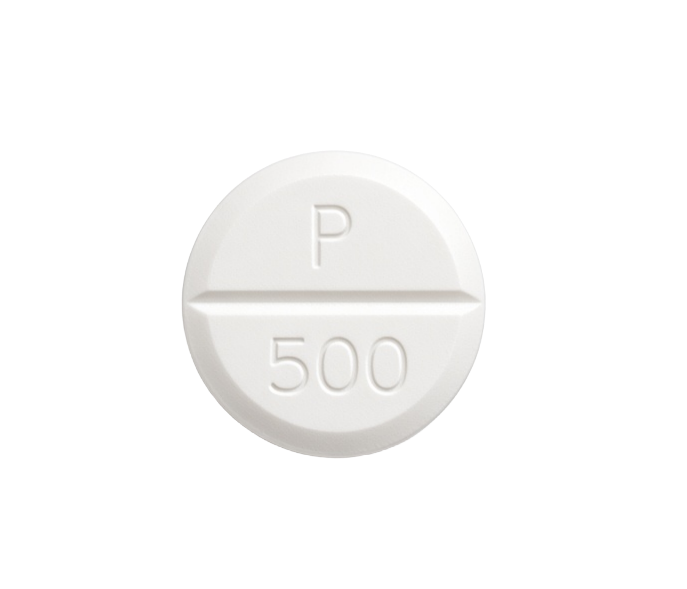

Tablets
Evaluate size, shape, color and visible appearance against the selected product recipe.
Precision Inspection · Confidence in Every ProductEnglish
Vision Inspection Module for Electronic Counting Machine
Vision Inspection Module for Electronic Counting Lines
Inspect tablets and capsules as they travel along feeding channels. AI Deep Learning and Pattern Recognition identify visible defects, while overhead suction nozzles remove individual defective products before counting and bottle filling. For pharmaceutical and nutraceutical production, including dietary supplements.
Product Video
See inline inspection
in operation.
Electronic counting machine vision inspection and individual rejection demonstration.
AI + Pattern RecognitionProduct-specific recipes
Individual vacuum rejectionChannel-specific removal
Up to 850/min/channelProduct- and host-dependent
Product coverage
Inspect your product.
Keep your counting line moving.
Product-specific recipes evaluate the surfaces visible to the camera array during inline handling.
Capsules
Evaluate size, shape, color and visible appearance against the selected product recipe.
Defect examples
Identify visible defects.
Apply your product criteria.
Check broken or chipped products, abnormal size and shape, color deviations and visually distinguishable product mix-ups.
Representative appearance examples. Detectability depends on camera-visible surfaces, product presentation, lighting and the selected recipe.
How it works
Inspect each channel.
Reject individual defects.
Inspect the Product Stream
Camera positioning and lighting follow the host machine’s feeding-channel arrangement.
Identify Individual Defects
Product-specific recipes distinguish acceptable variation from visible size, shape, color and appearance defects.
Remove the Identified Product
An overhead suction nozzle above the corresponding channel removes the defective product. Accepted products continue toward counting and filling.
AI Deep Learning + Pattern Recognition
Combine trained AI models with defined measurements for product-specific inspection.
Recipe Management
Saved recipes and adjustable inspection parameters simplify setup and changeover.
Inspection Records
Four user levels, defect statistics, PDF reports, audit trails and USB export support controlled operation and quality review.
Configurations & specifications
VIM-850.
Configured for your counter.
Nominal 12-channel configuration with three cameras.
| Available model | VIM-850 / host-specific configurations |
|---|---|
| Capacity | Up to 51,000 products/hour/channel (850/minute/channel) |
| Inspectable products | Tablets or capsules |
| Inspection contents | Broken, shape and color defects; recipe-specific thresholds |
| Inspection channels | 12 |
| Cameras | 3 |
| Rejection | Individual vacuum rejection above the corresponding channel |
| Power | Nominal: 1.5 kW |
| Power supply | 120/208 V AC, 60 Hz, 3-phase, 5-wire |
| Air pressure | 0.6 MPa |
| Air consumption | 190.2 gal/min |
| Dimensions, L × W × H | 31.5 × 35.4 × 75.4 in |
| Total weight | 440 lb |
Achievable throughput depends on the product, counter geometry and inspection scope.
Line integration
Build inspection
into your counting line.
Coordinate imaging, product tracking, rejection and bottle-filling controls around the host equipment.
Individual Product Rejection
The electronic counting module uses overhead suction nozzles to remove individual defective products from feeding channels before counting and bottle filling.
Questions About Vision Inspection Module for Electronic Counting Lines
Where is inspection placed in an electronic counting line?
Inspection occurs along the feeding channels before electronic counting and bottle filling.
How are defective products removed before counting?
Overhead suction nozzles remove individual defective products before counting.
What counter information is needed for integration?
Provide the counter model, channels, product, throughput and installation details.
Let's discuss your application
Your product.
Your inspection requirements.
Share your product type, target defects and required capacity. We will help you evaluate the next step.
